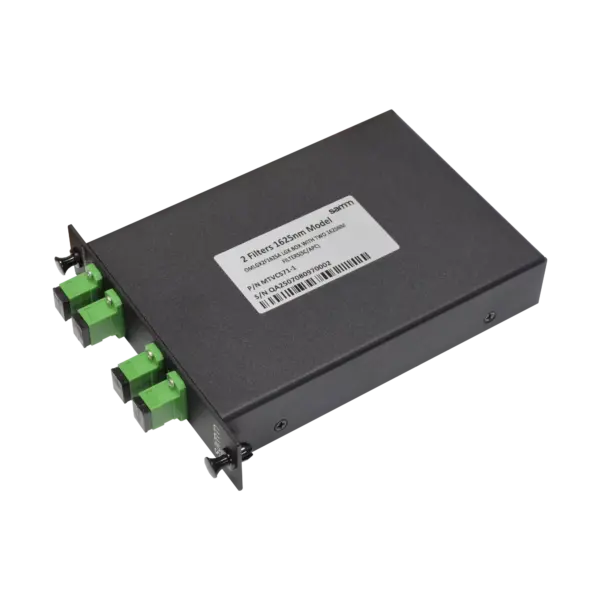

LGX Box with Two 1625 nm Filters (SC/APC) OMLGX2F162SA

The 1625 nm Filter Module (SC/APC) is a passive optical component designed to separate the 1625 nm wavelength—typically used for OTDR-based fiber monitoring—from active transmission wavelengths such as 1310 nm, 1490 nm, and 1550 nm. It enables non-intrusive, in-service fiber testing without disrupting live data traffic. Housed in a standard LGX module, the bypass unit maintains excellent optical performance with low insertion loss and high isolation, ensuring reliable monitoring access in GPON, XGS-PON, RFoG, and other FTTx networks.

Key Features

• Passes 1625 nm OTDR signals while blocking standard service wavelengths
• Enables in-service fiber monitoring without traffic interruption
• High isolation between 1625 nm and live transmission bands (1310/1490/1550 nm)
• Low insertion loss and high return loss
• Fully passive – no power required
• Housed in a standard LGX module, compatible with 19″ racks

Applications

• Continuous OTDR-based fiber health monitoring
• Integration with Remote Fiber Test Systems (RFTS)
• Multi-path fiber monitoring in FTTx networks

OMLGX2F162SA
